Delivering the regulatory confidence of an isolator and the operational efficiency of a rapid transfer device in one direct aseptic transfer system.

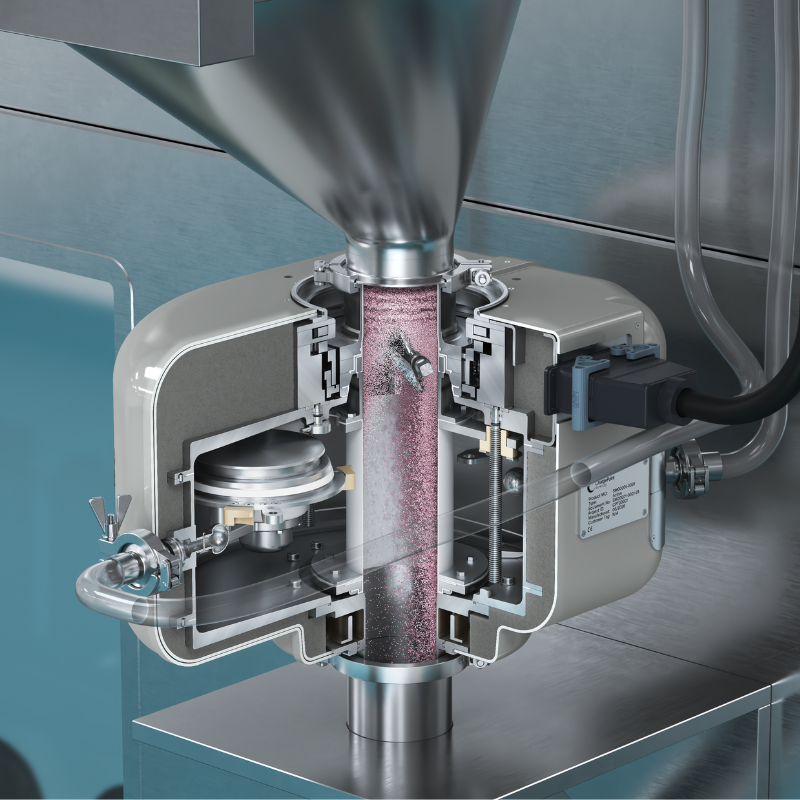

ChargePoint Actis™ builds fully validated sterility assurance into the transfer connection itself by enclosing the critical transfer surfaces within a fully steam-sterilisable chamber. This ensures two sterile interfaces come together at the make-and-break connection, exposed only to a penetrative sterilisation process, never to the surrounding environment.
ChargePoint Actis™ takes trusted containment principles and brings them together in a fundamentally new way that delivers an altogether better solution.
The result is double containment – both primary and secondary – in a single, steam-sterilised, direct transfer system.

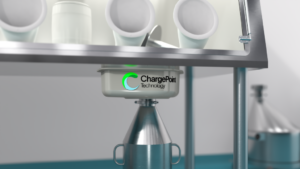

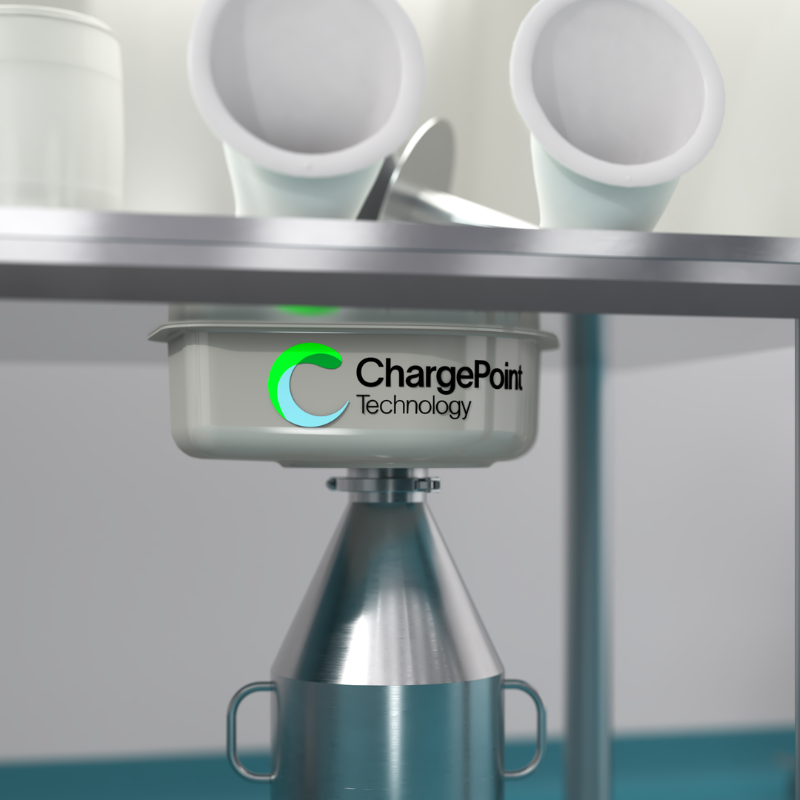

ChargePoint Actis™ LITE
For weigh and dispense steps, the ChargePoint Atis™ LITE version can be integrated into the isolator for filling of the intermediate container either in aseptic or high-containment execution.
Designed to deliver at every stage, the modular design of ChargePoint Actis™ supports multiple mounting configurations and process types at any stage of drug substance and drug product production, from weigh and dispense steps to final filling and formulation and everything in between.
Visit our Virtual Process Space for an interactive demonstration.
| Powder filling |
| Compounding/ Suspension Preparation |
| Dispensing |
| Freeze Drying/ Microsphere Formulation |
| Milling & Sieving |
| Cleaning and Sterilisation |
Containment performance OEB6+
Sterility performance SAL 10-6

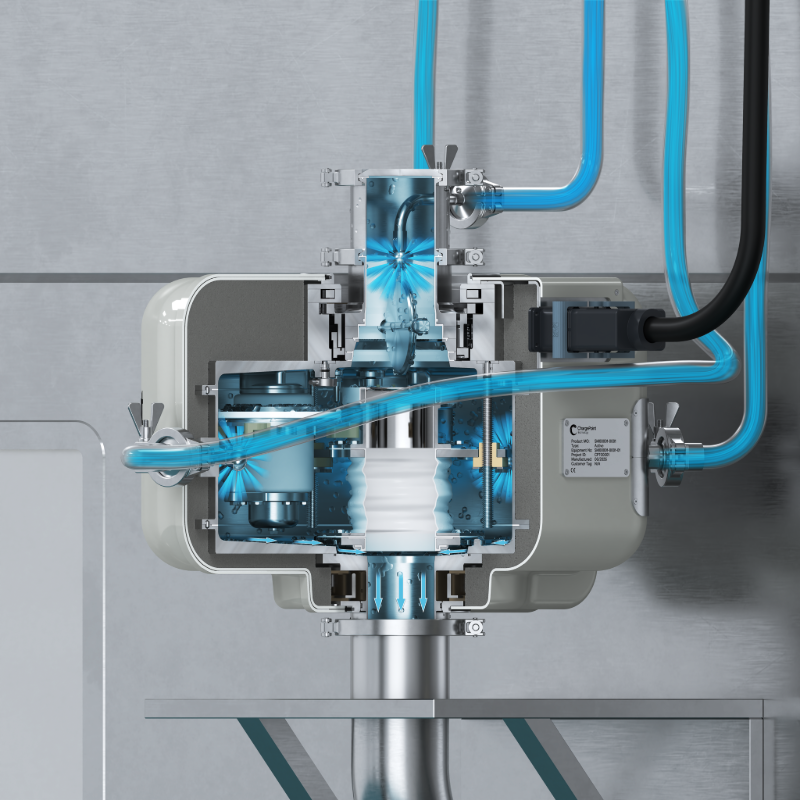

Cleaning & sterilisation CIP/SIP
| Sterilisation | Active: Steam-In-Place (SIP) Passive: Autoclave |
| Connection | Tri-clamp |
| Size | 100mm (4”) (Other sizes coming soon) |
| Product contact materials | 316L stainless steel, platinum-cured silicone (FDA/USP Class VI Compliant) |
| Control system | Remote I/O module in communication with ChargePoint supplied code via Industrial Ethernet, running on customer PLC |
Delivering the regulatory confidence of an isolator and the operational efficiency of a rapid transfer device in one direct aseptic transfer system.
ChargePoint Actis™ builds fully validated sterility assurance into the transfer connection itself by enclosing the critical transfer surfaces within a fully steam-sterilisable chamber. This ensures two sterile interfaces come together at the make-and-break connection, exposed only to a penetrative sterilisation process, never to the surrounding environment.
ChargePoint Actis™ takes trusted containment principles and brings them together in a fundamentally new way that delivers an altogether better solution.
The result is double containment – both primary and secondary – in a single, steam-sterilised, direct transfer system.
ChargePoint Actis™ LITE
For weigh and dispense steps, the ChargePoint Atis™ LITE version can be integrated into the isolator for filling of the intermediate container either in aseptic or high-containment execution.
Designed to deliver at every stage, the modular design of ChargePoint Actis™ supports multiple mounting configurations and process types at any stage of drug substance and drug product production, from weigh and dispense steps to final filling and formulation and everything in between.
Visit our Virtual Process Space for an interactive demonstration.
Containment performance OEB6+
Sterility performance SAL 10-6
Cleaning & sterilisation CIP/SIP
